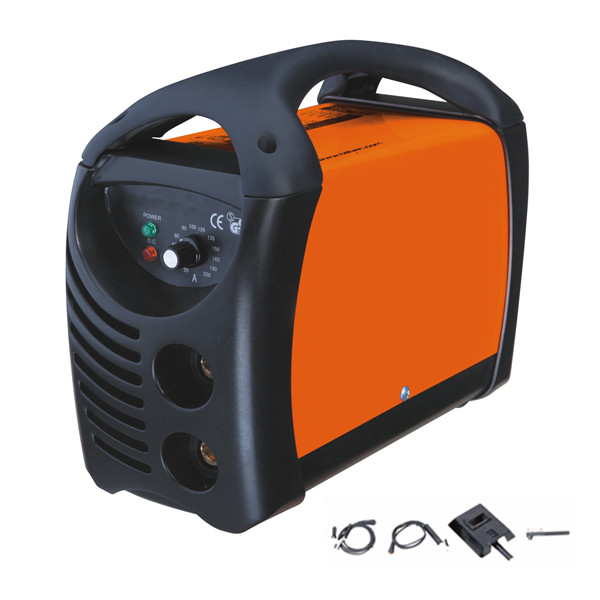

Inverter Mma/Tig Welding Machine
| Model | 86251 | 86252 | 86253 | 86254 |
| Input power voltage(V) | 220v±10% |
220v±10% |
220v±10% |
220v±10% |
| Frequency(Hz) | 50/60 |
50/60 |
50/60 |
50/60 |
| Rated input current(Kva) | 3.8 | 4.5 | 5.3 | 7.1 |
| Output current adjusting range(A) |
20-120 |
20-140 | 20-160 | 20-200 |
| No-load voltage(V) | 56 | 56 | 56 | 56 |
| Rated duty cycle(%) | 60 | 60 | 60 | 60 |
| Speed of welding wire | 0.93 | 0.93 | 0.93 | 0.93 |
| Protective grade of housing | Ip21S |
Ip21S |
Ip21S |
Ip21S |
| Overall dimension(mm) | 305*130*220 |
305*130*220 |
305*130*220 |
305*130*220 |
| Weight(kg) | 3.8 | 4.0 | 4.3 | 4.5 |
| Welding thickness(mm) | 2-3 | 2-4 | 2-4 | 2-4 |
| Suitable welding wire(mm) | 1.6-2.5 | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 |
